Cen Tech Digital Inspection Camera: Full Review

The cen tech digital inspection camera is a budget borescope sold at Harbor Freight for $79.99, featuring a 2.4-inch color LCD, 38-inch flexible cable, and an 8.5mm waterproof camera head built for automotive and home diagnostics.

Key Takeaways

• The inspection camera (model 61839) is priced at $79.99 at Harbor Freight, often lower with coupons.
• It offers a 2.4-inch color LCD, 320×240 resolution, and a waterproof 8.5mm camera head on a 38-inch flexible cable.
• Common uses include inspecting engine cylinders, plumbing lines, and wall cavities.
• Users praise the value but flag limitations: stiff cable, no image capture on the base model, and limited replacement part availability.
• For higher resolution and photo/video capability, the Cen-Tech High-Resolution model 61838/60695 is the natural upgrade path.
• A USB video capture dongle ($15–$25) can add recording capability to the base model without buying a new unit.

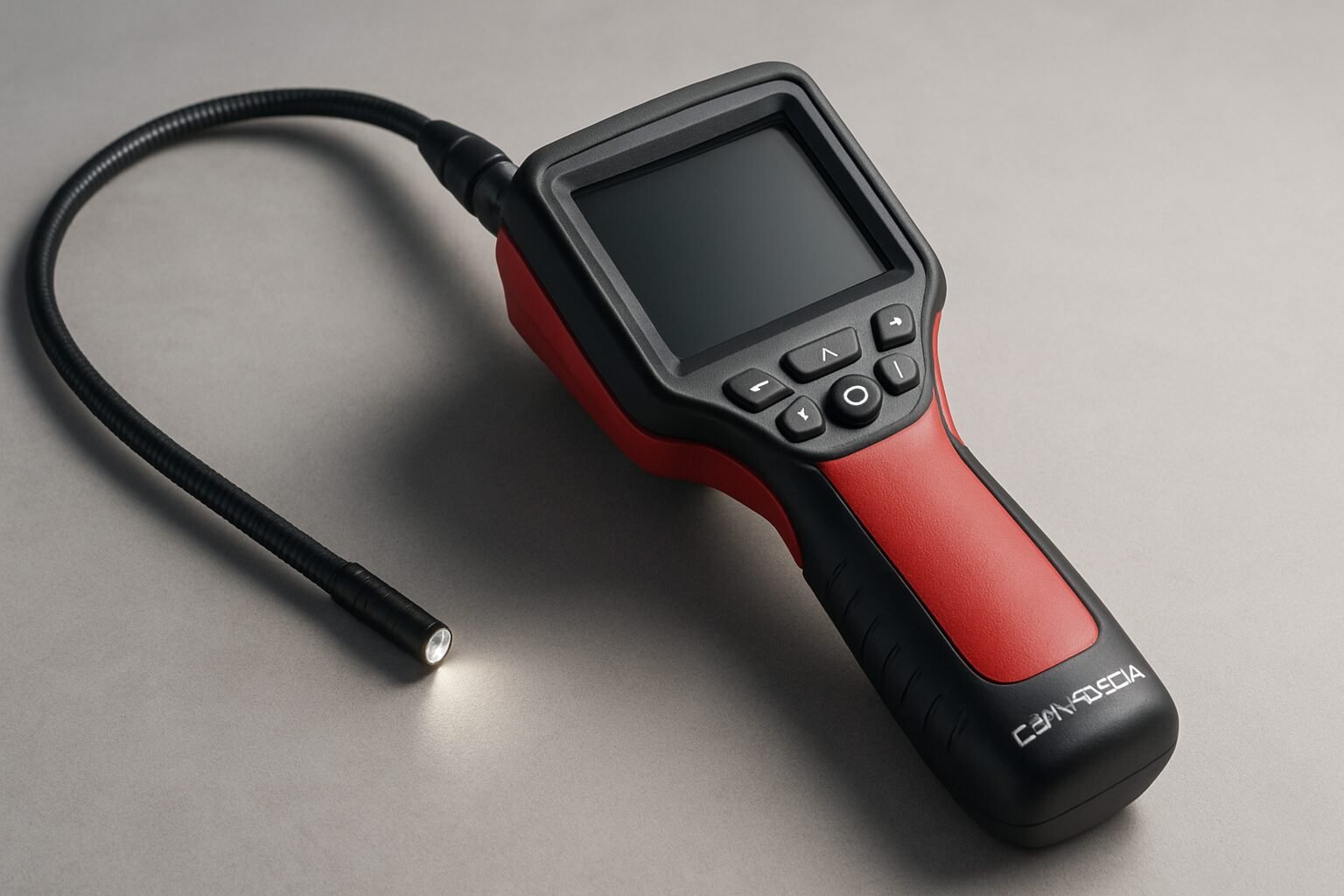

What Is the Cen-Tech Digital Inspection Camera?

The this type of camera is an entry-level borescope designed for homeowners, auto enthusiasts, and DIYers who need a visual check of tight, dark, or hard-to-reach spaces. It combines a compact 8.5mm camera head, a flexible gooseneck cable, and a handheld display to deliver real-time video from inside engines, walls, pipes, and more. At $79.99, it sits at the affordable end of a category where professional-grade tools can cost $500 or more.

Overview and Design

The tool is built around a pistol-grip-style handheld unit that houses a rechargeable battery and a 2.4-inch color LCD. A 38-inch flexible cable extends from the top, ending in the waterproof camera head with a built-in LED ring light. The kit includes a hook, mirror, and magnet that screw onto the camera tip, expanding its utility for retrieving dropped items or navigating around curves. A video-out port lets you connect to an external monitor, though the base model stores no photos or video internally.

Core Features

• 2.4-inch color LCD with 320×240 resolution for a clear live view.
• 38-inch flexible cable that holds its shape while maneuvering through confined paths.
• 8.5mm waterproof camera head narrow enough for most spark plug holes and drain openings.
• LED ring light that illuminates dark spaces without washing out the image.
• Video-out support for real-time viewing on a larger screen via the included AV cable.

Included Accessories

According to Harbor Freight, every Cen-Tech 61839 box contains the camera unit, a hook, a mirror, a magnet, a video-out cable, a USB charging cable, and a manual. Some third-party sellers may include an SD card, but the stock kit does not.

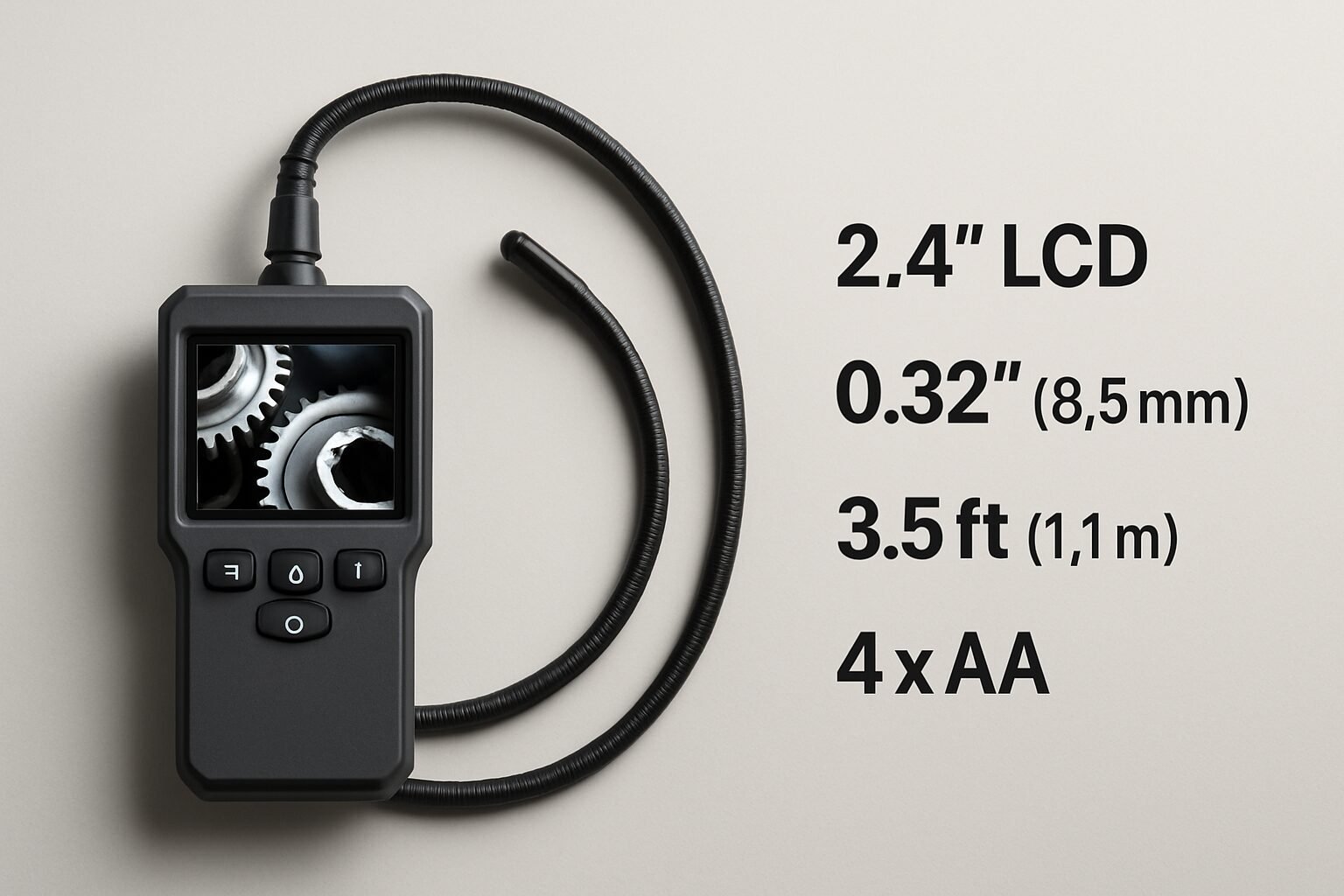

Key Specifications and Technical Details

The this kind of inspection camera prioritizes affordability over high-end imaging, yet its specs are sufficient for most casual tasks. Knowing the hardware helps set realistic expectations before your first use.

Camera and Display Specs

• Camera diameter: 8.5 mm (0.33 inches), small enough to pass through most spark plug ports.
• Waterproof rating: IP67 equivalent, safe for brief submersion in water or fluids.
• Display: 2.4-inch TFT LCD, 320×240 resolution, non-touch.
• Field of view: approximately 60°, adequate for narrow inspection spaces.
• LED lighting: built-in ring of LEDs around the camera head for consistent illumination.

Cable and Durability

The cable is 38 inches (96.5 cm) of semi-rigid gooseneck material. It holds its shape well but may kink if bent at extreme angles. User reviews on Lumberjocks warn that forcing the cable around sharp corners can break internal wiring, so gradual curves are always the safer approach. Inspect the cable jacket for kinks before and after each use.

Battery and Power

The internal lithium-ion battery charges via a standard USB Micro-B port in roughly 2–3 hours from empty. Users report several hours of continuous use on a full charge. One reviewer on Lumberjocks noted that after five months and roughly a dozen uses, the battery still showed a full charge, suggesting strong standby life. The battery is not user-replaceable, which is worth factoring into your long-term cost calculation.

Real-World Uses: Where This Camera Excels

The the tech digital inspection camera shines in situations where you need a quick, no-fuss visual check of confined areas. Its affordable price makes it a popular first borescope for home mechanics and tinkerers who don’t want to commit to a $200+ tool for occasional use.

Automotive Diagnostics

Technicians and DIYers use it to look inside cylinder bores without removing the head, inspect turbocharger impellers, check for belt or hose wear behind covers, and verify piston top condition. The waterproof camera slips into oil fill holes or coolant passages with ease. Because the head is only 8.5 mm wide, it fits most modern spark plug holes without modification.

Home Inspection and DIY Repairs

Around the house, the camera helps locate wires, pipes, and studs behind drywall, examine HVAC ducting for blockages, and peer under appliances without moving them. Woodworkers have used it to inspect internal joinery and dust-collection channels. The included magnet and hook make it easy to retrieve dropped screws or lost keys from tight gaps, adding genuine utility beyond pure inspection.

Plumbing and Pipe Inspection

While not a substitute for a full sewer inspection camera with a push-rod system, the camera can investigate drain traps, check for clogs under sinks, and inspect vent stacks. The 38-inch reach limits it to short runs, but for simple blockages within a few feet of the access point, it can save a costly plumber’s visit.

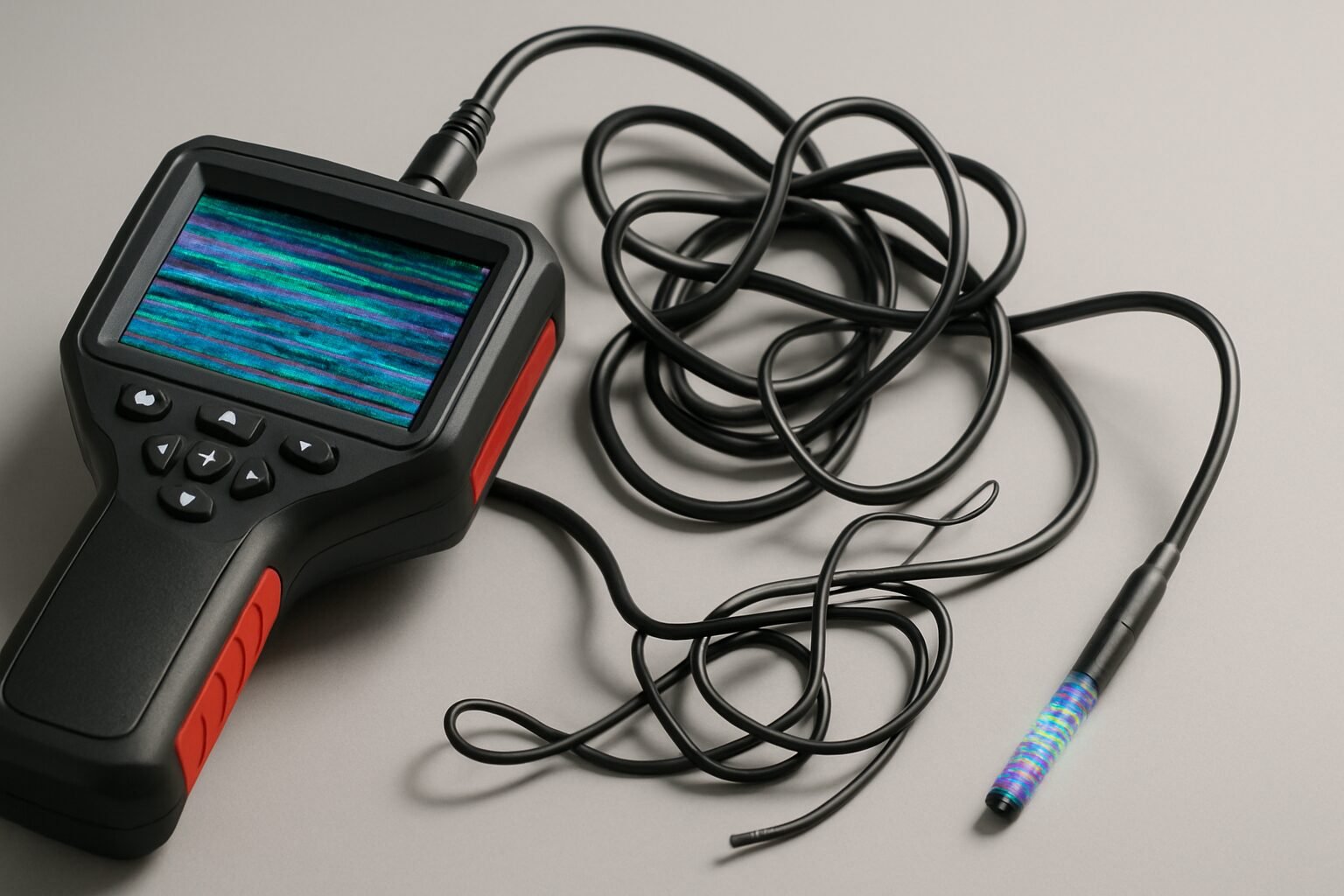

Known Issues: Software Glitch and Cable Quirks

The cen tech has a few quirks worth knowing before you buy. Awareness of these saves frustration on your first job.

Power-On Software Glitch

Users on Lumberjocks have reported that powering on the unit without the camera cable fully attached can trigger a software freeze, requiring a battery pull or hard reset. The fix is simple: always connect the cable before pressing the power button. It’s a minor firmware issue, but it catches new owners off guard.

Screen and Image Quality

The 2.4-inch 320×240 display is the most common complaint in user reviews. Compared to modern smartphones or dedicated borescopes with 720p screens, the image can appear grainy, especially in low light. The LED ring helps, but it’s not adjustable in brightness. If you need crisp detail for reading part numbers or inspecting micro-cracks, the high-resolution Cen-Tech model or a phone-based scope is a better fit.

Cable Flexibility and Breakage Risks

The cable’s stiffness is a double-edged situation. It lets you hold a probe shape, but it can fail if forced around a tight 90-degree bend. Replacement cables are not sold separately by Harbor Freight, so a broken cable often means replacing the entire unit. Buying a second unit during a deep-sale event sometimes costs less than sourcing a single replacement cable from a third-party seller.

Battery and Charging Concerns

Some users report that the charging indicator light stays red even after extended charging sessions. Harbor Freight’s manual does not clearly state whether the light should change color when fully charged. If the battery drains quickly or the unit won’t power on, try a different USB cable and charger block before assuming the battery has failed.

Cen-Tech Digital Inspection Camera vs. Competitors

Choosing the right inspection camera means balancing price, features, and durability. Below is a comparison of the inspection camera with popular alternatives available as of 2026.

Comparison Table

Model	Price (Approx.)	Screen	Resolution	Camera Head	Cable Length	Photo/Video Capture	Ideal Use
Cen-Tech 61839	$79.99	2.4″ color LCD	320×240	8.5 mm waterproof	38 inches	No (video-out only)	Budget DIY, basic diagnostics
Cen-Tech 61838/60695	$169.99 ($135–143 with coupon)	3.5″ color LCD	640×480 or higher	8.5 mm waterproof	39 inches	Yes (microSD card slot)	Professional mechanic, documentation
Ames Instruments 63980	$99.99	2.7″ color LCD	320×240	9 mm waterproof	36 inches	No	Home inspection, occasional use
Klein Tools ET16	$99.97	Uses smartphone	Depends on phone	7.8 mm waterproof	10 feet	Yes (app capture)	Plumbing, long-reach applications
Depstech WF010 (Wireless)	$30–$60	Uses smartphone	1080p (phone-dependent)	8.5 mm semi-rigid	16.5 feet	Yes (app capture)	Long-reach, high-res casual use

Cen-Tech vs. Depstech Wireless Endoscopes

The Depstech WF010 and similar wireless endoscopes connect directly to your smartphone via Wi-Fi, delivering 1080p video to a free app. At $30–$60, they undercut the this type of camera on price and resolution. The trade-off: you need a charged phone nearby, the Wi-Fi connection can drop in metal-heavy environments, and the semi-rigid cable offers less directional control than the Cen-Tech’s gooseneck. For pure image quality per dollar, the Depstech wins. For standalone operation without a phone, the Cen-Tech is the cleaner choice.

Ames vs. Cen-Tech: Which Cable Is Compatible?

A common question in YouTube comment sections is whether the Ames Instruments 63980 cable fits Cen-Tech units. Both cameras use an 8.5mm head with a similar threaded collar for accessories, but the cable connector at the handle end uses different proprietary plugs. They are not directly interchangeable. If your Cen-Tech cable fails, sourcing a genuine replacement or buying a second unit remains the most reliable path.

When Is the Cen-Tech 61839 the Right Choice?

If you only need an occasional look inside an engine or wall cavity, and you can tolerate lower resolution without built-in image saves, the 61839 delivers solid value. At $79.99, or roughly $60–$64 with a Harbor Freight 20% off coupon, it’s one of the least expensive standalone handheld borescopes on the market. For frequent professional use where recording is critical, the high-resolution Cen-Tech models or the Klein ET16 are stronger options.

Upgrading to the Cen-Tech High-Resolution Camera

For about $135–$170, the model 61838/60695 adds a larger 3.5-inch screen, higher resolution, and the ability to capture photos and video onto a microSD card. According to a review on nspek.com, the improved clarity is genuinely useful during detailed inspections where you need to document a finding or show a customer. The cable is 39 inches, one inch longer than the base model, and the accessory kit is identical.

Cen-Tech Digital Inspection Camera Models Compared

Harbor Freight sells several cen tech digital inspection camera variants under different item numbers. The same model sometimes appears under multiple SKUs, but the core differences come down to resolution and recording capability.

Model 61839 (Standard)

This is the base model: 2.4-inch display, 320×240 resolution, no photo or video storage. It outputs live video through the included AV cable but cannot record internally. It’s the right pick for quick checks where documentation isn’t required.

Model 61838/60695 (High-Resolution)

Often labeled the “High-Resolution” model, it features a 3.5-inch screen, 640×480 resolution or higher depending on production batch, and a microSD slot for stills and video. The cable is 39 inches and battery life is similar to the base model. A Lumberjocks user reported paying $143 after a 25% off coupon, making it a compelling upgrade for anyone who needs documentation capability.

Model 67980 (What’s the Difference?)

This SKU appears online but seems identical to the 61839 in core specs. It may represent a different production run or a bundle with alternate accessories. The reliable rule: if the box says “High Resolution,” you have the superior model. If it doesn’t, expect the base 320×240 experience.

Pros and Cons

The cen tech digital inspection camera offers a clear value proposition for casual users, but it has real limitations that matter at the professional level. Here’s the honest breakdown.

Pros

• Affordable entry point: At $79.99 (or ~$60 with coupons), it’s one of the lowest-cost standalone borescopes available.
• Standalone operation: No smartphone required. The built-in 2.4-inch screen works anywhere.
• Waterproof camera head: IP67-equivalent rating handles wet environments and fluid-filled passages.
• Useful accessory kit: The included hook, magnet, and mirror add real utility beyond basic inspection.
• Video-out port: Connects to any RCA monitor for larger-screen viewing or laptop recording via a $15–$25 USB capture dongle.
• Strong standby battery life: Users report months of standby without needing a recharge.

Cons

• No built-in recording: The base model 61839 cannot save photos or video internally.
• Low resolution: The 320×240 display looks grainy compared to modern smartphone screens or 720p borescopes.
• Stiff cable: The semi-rigid gooseneck can break internally if forced around sharp bends.
• No replacement parts: Harbor Freight does not sell cables or batteries separately for this model.
• Non-replaceable battery: When the battery eventually fails, the whole unit needs replacing.
• Power-on glitch: Booting without the cable attached can cause a software freeze.

How to Extend the Lifespan of Your Camera

With proper care, the cen tech digital inspection camera can serve reliably for years. The key is treating the cable and camera head gently, especially given the realities of an entry-level tool with no user-serviceable parts.

Proper Cable Handling Techniques

Always uncoil the cable fully before use and avoid twisting it sharply. When feeding it into an opening, support the cable with your free hand so it doesn’t kink at the entry point. After use, coil it in large loops of at least 6 inches in diameter and secure with a Velcro tie. Never wrap it tightly around the handle.

Storage and Maintenance

Store the camera in a dry, room-temperature location. A small toolbox or the included hardshell case (where provided) keeps dust and moisture out between jobs. Clean the lens after each use with a microfiber cloth. Abrasive cleaners can scratch the glass and reduce image clarity over time. If the camera was used in wet environments, dry the head and cable fully before storing.

Taking Advantage of Harbor Freight Coupons and Warranty

Harbor Freight regularly issues 20–25% off coupons, bringing the 61839 down to roughly $60–$64. The tool comes with a 90-day limited warranty, and Inside Track Club members often receive extended return flexibility. Keep your receipt and register the product on the Harbor Freight website to simplify any warranty claims.

Accessories and Replacement Parts

The cen tech digital inspection camera works with several add-ons that extend its functionality, though official replacement parts remain difficult to source through Harbor Freight directly.

Included Accessories and Their Uses

The hook retrieves wires or small objects; the magnet grabs steel nuts, bolts, or drill bits; the mirror lets you look sideways in pipes or around corners. All three screw onto the camera head’s threaded collar. The video-out cable connects to any monitor with a composite RCA input, turning the tool into a shared-view inspection station where multiple people can watch simultaneously.

Finding Replacement Parts

Harbor Freight does not sell replacement cameras, cables, or batteries for the 61839 individually. If your unit fails, check the Harbor Freight parts line at 1-800-444-3353 or search third-party sellers on eBay and Amazon. Compatibility varies, so verify connector type before ordering. Buying a second unit during a sale event sometimes costs less than a single aftermarket cable.

Video Output and Using External Monitors

One under-used feature is the AV out port. Connect the camera to a small portable monitor or a TV via RCA input and you get a larger viewing surface with both hands free for maneuvering. USB video capture dongles in the $15–$25 range let you record the feed on a laptop, effectively adding recording capability to the base model without upgrading to the high-resolution version.

“For a tool under $80, the Cen-Tech inspection camera does what it promises. The image isn’t going to win awards, but for checking a cylinder bore or finding a blockage under a sink, it gets the job done without drama.” – Verified user review, Lumberjocks community forum

“According to industry tool reviewers, the sub-$100 borescope category has expanded significantly since 2020, with standalone-screen models like the Cen-Tech 61839 holding their ground against smartphone-dependent competitors because they require zero setup and work in areas with poor Wi-Fi or Bluetooth signal.” – nSpek digital inspection tool analysis

Frequently Asked Questions

How much is the cen tech digital inspection camera?

The model 61839 is regularly priced at $79.99 at Harbor Freight. With a 20–25% off coupon, the price drops to roughly $60–$64. The high-resolution model 61838/60695 lists for $169.99 but is frequently on sale for $135–$143.

What is a digital inspection camera used for?

A digital inspection camera is used to visually inspect hard-to-reach spaces such as engine cylinders, wall cavities, drain pipes, and HVAC ducts. The flexible cable and LED lighting let you see clearly without disassembly or demolition.

What is the difference between a borescope and an endoscope?

Borescopes are optical tools used for industrial and mechanical inspection, while endoscopes are medical-grade flexible scopes designed for clinical use. In consumer tools, the terms are used interchangeably. The Cen-Tech device is a flexible borescope built for trade and DIY applications.

Does the Cen-Tech camera record video or take pictures?

The base model 61839 does not record internally. It provides a live video feed and has a video-out port for external monitors, but no built-in storage. The high-resolution model 61838/60695 includes a microSD card slot for capturing photos and video.

How much does it cost to put a camera in a sewer line?

Professional sewer camera inspections typically cost $100–$800 depending on the length of the run and your location. The cen tech digital inspection camera is not designed for full sewer line inspection, as its 38-inch cable only reaches a few feet into a drain. For short drain trap checks, it works well as a low-cost alternative.

How long does the battery last on a Cen-Tech digital inspection camera?

Users report several hours of continuous use on a full charge, with a charge time of roughly 2–3 hours. Standby life is strong. One Lumberjocks reviewer noted the battery still read full after five months and approximately a dozen uses.

Where can I find a replacement cable or battery?

Harbor Freight does not sell individual replacement cables or batteries for the 61839. Check the Harbor Freight parts line, search third-party sellers on eBay, or consider purchasing a second unit during a promotional sale event.
